Bronze Threaded Couplings青銅連接器

來源: 青銅連接器 發布時間: 2015-01-03 17:05:52

Couplings

Bronze Threaded CouplingsBronze Threaded Couplings

  • For use with copperclad sectional ground rods
  • UL listed
  • High-strength corrosion-resistant copper alloy ensure low-resistance connection
  • Chamfered ends to facilitate driving





BRONZE GROUND ROD COUPLINGS

PART #

ROD SIZE
(in inches)

THREAD SIZE

PACKAGED
(per box)

12C 1/2" 9/16" - 12 UNS 25
58C 5/8" 5/8" - 11 UNS 25
34C 3/4" 3/4" - 10 UNS 25
10C 1" 1" - 8 UNS 25

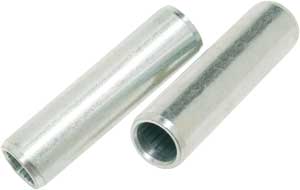

Threadless Couplings for Galvanized Ground Rods

  • Composition of high-strength steel, zinc coated for corrosion protection
  • Tapered to compress to the form of the ground rod
  • Join two more ground rods
  • 95% conductivity
  • Pullout force no less than 1,500 lb/ft



THREADLESS COUPLINGS FOR GALVANIZED RODS

PART #

ACTUAL ROD DIAMETER
(Required Tolerance +.014/-.000")

PACKAGED
(per box)

58CCZZ

5/8 (.625)"

75

34CCZZ 3/4 (.730 0 770) 75



Couplings - Stainless Steel Ground RodsThreadless Couplings for Copperclad Ground Rods

  • Tapered to compress to the form of the ground rod
  • Join two or more ground rods
  • Composition of high-strength silicon bronze
  • 95% conductivity









THREADLESS COUPLINGS FOR COPPERCLAD RODS

PART #

ACTUAL ROD DIAMETER
(Required Tolerance ±.005")

PACKAGED
(per box)

58DC

5/8 (.560)"

25

34DC 3/4 (.678)" 25
